Detailed Product Description
| Rated Capacity: |
8200kg |
Power Source: |
Diesel Engine |
| Application: |
Highway, Ports, Earthwork, Railway |
Product Name: |
Backhoe Loader, Wheel Backhoe Loader |
| Type: |
4 Wheel |
Moving Type: |
Wheel Loader |

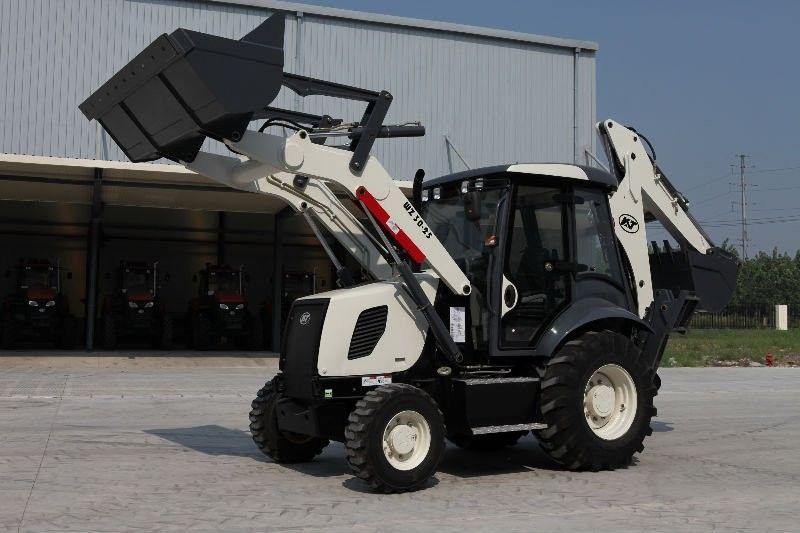

Earthwork 8200kg Wheel Backhoe Loader With Diesel Engine For Shoveling Sand
Quick Detail:
1,backhoe loader, wheel loader, backhoe wheel loader
2,industrial area
3,8200kg rated capacity, 0.3cbm bucket
Description:
Adopt the Deutz turbo charging engine, which have the advantage of high fuel consumption efficiency, low emission, big powerman margin, etc
Perkins engine have the advantage of powerful, low fuel consumption, low emission and excellent start performance in low temperature. Euro III emission standard.
The international famous enterprise of CARRARO, Electric-hydraulic control, Synchromesh mechanical shift.
The international famous enterprise of CARRARO, Single-side braking axle with free-maintenance wet-type.
Applications:
Backhoe loader is a widely used in highway, railway, construction, utilities, ports, mines and other construction projects of earthwork construction machinery, it is mainly used for shoveling soil, sand, lime, coal and other bulk materials, but also on the ore , hard soil, etc. for mild shoveling job
Specifications:
Main Technical Parameters:
|
Item
|
Unit
|
WZ30-25
|
|
Backhoe bucket capacity
|
m3
|
0.2
|
|
Rated loading bucket capacity
|
m3
|
0.9
|
|
Rated Lifting Force
|
KN
|
25
|
|
Engines rated power/rated speed
|
kW
|
70/2200
|
|
Total operating weight
|
kg
|
8200
|
|
Backhoe turning angle
|
Left
|
º
|
90
|
|
Right
|
º
|
90
|
|
Backhoe parameter
|
Max. digging radius
|
mm
|
5390
|
|
Max. dump height
|
mm
|
3500
|
|
Radius at the max. dump height
|
mm
|
1084
|
|
Digging buckets max. rotating angle
|
º
|
180
|
|
Max. digging depth
|
mm
|
4365
|
|
Max. digging force
|
KN
|
50
|
|
Loading parameter
|
Max. dump height
|
mm
|
2618
|
|
Dump reach at max. dump height
|
mm
|
670(at dumping angle
|
|
Bucket drawback angle
|
Transportation position
|
º
|
43
|
|
Ground position
|
º
|
34
|
|
Dump angle
|
º
|
43.5
|
|
Digging depth
|
mm
|
191
|
|
Max. breakout force
|
KN
|
40
|
|
Max. grade ability
|
%
|
25
|
|
Max. traction power
|
KN
|
70
|
|
Gear and travel speed
|
Forward/Backward gear I
|
km/h
|
5.8/5.8
|
|
Forward/Backward gear II
|
9.9/9.9
|
|
Forward/Backward gear II
|
21.4/21.4
|
|
Forward/Backward gear IV
|
38/38
|
|
Min. turning radius
|
mm
|
4300
|
|
Total length
|
mm
|
5840
|
|
Total height
|
mm
|
2700
|
|
Max. height (Cab)
|
mm
|
3530
|
|
Max. Width(outrigger)
|
mm
|
2350
|
|
Bucket width
|
mm
|
2315
(with attachment)
2313
(bucket max. width
|
|
Loading Operation Specification
|
|
Rated Bucket Capacity(m³)
|
0.9
|
|
Max. Dumping Clearance(mm)
|
2612
|
|
Max. Dump reach(mm)
|
727
|
|
Dig depth
|
191
|
|
Max. breakout force
|
>40
|
|
Rated Lifting Force
|
25
|
|
Rise Time
|
5.5
|
|
Fall Time
|
4.5
|
|
Tilting Time
|
1.5
|
|
Excavating Operation Specification
|
|
Rated Backhoe Bucket Capacity
|
0.2
|
|
Max. Digging Depth
|
4365
|
|
Max. Digging Force
|
50
|
|
Max. Digging Radius
|
5390
|
|
Max. Dump Height
|
3500
|
|
Max. Outreach from mid. of Rear Axle mm
|
6583
|
|
Max. Outreach at the Max. Dump Height (mm)
|
1084
|
|
Turning Angle
|
180°
|
Competitive Advantage:
- Have strong design team, experience engineers supply good service;
- The quality is reliable, the appearance looks modern and fashion;
- Reasonable price.
