Detailed Product Description
| Rated Capacity: |
7400kg |
Power Source: |
Diesel Engine |
| Application: |
Utilities, Ports, Earthwork, Railway |
Product Name: |
Backhoe Loader, Wheel Backhoe Loader |
| Type: |
4 Wheel |
Moving Type: |
Wheel Loader |

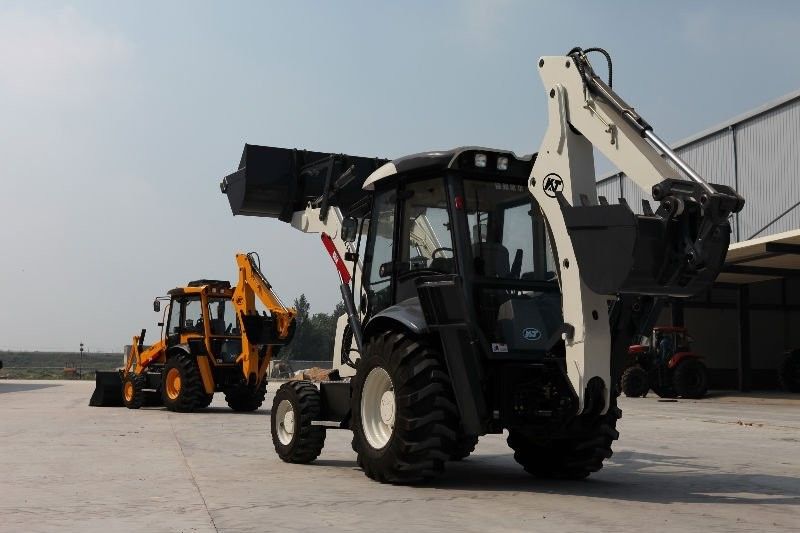

4 Wheel Backhoe Loaders 0.3cbm Bucket 7400kg Weifang Engine Ports
Quick Detail:
1, backhoe loader, wheel loader, backhoe wheel loader
2, industrial area
3, 7400kg rated capacity, 0.3cbm bucket
Description:
Adopt the Deutz turbo charging engine, which have the advantage of high fuel consumption efficiency, low emission, big powerman margin, etc
Perkins engine have the advantage of powerful, low fuel consumption, low emission and excellent start performance in low temperature. Euro III emission standard.
The international famous enterprise of CARRARO, Electric-hydraulic control, Synchromesh mechanical shift.
The international famous enterprise of CARRARO, Single-side braking axle with free-maintenance wet-type.
Applications:
Backhoe loader is a widely used in highway, railway, construction, utilities, ports, mines and other construction projects of earthwork construction machinery, it is mainly used for shoveling soil, sand, lime, coal and other bulk materials, but also on the ore , hard soil, etc. for mild shoveling job
Specifications:
Backhoe loader
Model: WZ30-25
DEUTZ TD226B
CARRARO synchronization shift, electric-hydraulic control
CARRARO braking axle
Main Performance:
1.Backhoe loaders exclusive use chassis, compact structure, rationally distributed.
2.Equipped with totally enclosed ROPS cab with broad vision and attractive outline design, it is comfort and reasonable to control the machine with its full range and humanization design in control system.
3.Adopt the Weichai DEUTZ engine, which is green environmental protection, high power, less fuel consumption, high working efficiency, low use cost.
4.The imported professional digging/loading transmission system from Italy, and Chinese top brand hydraulic systems enable the high stability, and the machines performance could reach the international advanced level.
5.Excellent digging/loading performance brings the best return on customers investment.
6.The imported driving axle with differential lock and wet-type brake ensure the hauling ability and safety performance. Big steering angle and big oscillating angle of swing steering axle ensure the high steering ability. Driving brake and parking brake system adopt the self-regulating, full-regulating wet-type brake with free-maintenance.
7.Optional two-wheel drive or four-wheel drive could meet customers requirement.
8.Various optional tools could be equipped according to customers requirement.
Loading Performance
Mono lever controls booms rise and fall overturn of the loading bucket and the clutchs shift.
Automatic leveling system of loading bucket avoids material drops out, automatic reposition after dumping.
In-line arrangement double cylinder of the loading system has the superior breakout force. The loading bucket could completely turnover.
Digging Performance:
Spread wing style outriggers and mid-type excavating gear, with superior working stability.
Attached with different attachment, it could accomplish different operations, such as excavating, crumbling, skiving, etc.
Excavating control valve with six jumper valves, special designed buffer system, ensure the working process smoother and steadier.
Backhoe Loader
Model: WZ30-25
DEUTZ TD226B
CARRARO synchronization shift, electric-hydraulic control
CARRARO braking axle
Main Technical Parameters:
|
Item
|
Unit
|
WZ30-25
|
|
Backhoe bucket capacity
|
m3
|
0.3
|
|
Rated loading bucket capacity
|
m3
|
1
|
|
Rated Lifting Force
|
kN
|
>25
|
|
Engines rated power/rated speed
|
kW
|
70/2200
|
|
Total operating weight
|
kg
|
7400
|
|
Backhoe turning angle
|
Left
|
º
|
90
|
|
Right
|
º
|
90
|
|
Backhoe parameter
|
Max. digging radius
|
mm
|
5150
|
|
Max. dump height
|
mm
|
3738
|
|
Radius at the max. dump height
|
mm
|
1084
|
|
Max. digging radius at ground level
|
mm
|
5437
|
|
Digging buckets max. rotating angle
|
º
|
180
|
|
Max. digging depth
|
mm
|
4340
|
|
Max. digging force
|
kN
|
>50
|
|
Loading parameter
|
Max. dump height
|
mm
|
2612
|
|
Dump reach at max. dump height
|
mm
|
727(at dumping angle
|
|
Bucket drawback angle
|
Transportation position
|
º
|
43
|
|
Ground position
|
º
|
34
|
|
Dump angle
|
º
|
43.5
|
|
Digging depth
|
mm
|
191
|
|
Max. breakout force
|
kN
|
>40
|
|
Max. grade ability
|
%
|
16.7
|
|
Max. traction power
|
kN
|
70
|
|
Gear and travel speed
|
Forward/Backward gear I
|
km/h
|
5.9/5.9
|
|
Forward/Backward gear II
|
9.8/9.8
|
|
Forward/Backward gear II
|
21.2/21.2
|
|
Forward/Backward gear IV
|
39.8/39.8
|
|
Min. turning radius
|
mm
|
3795
|
|
Total length
|
mm
|
7077
|
|
Total height
|
mm
|
2700
|
|
Max. height (Cab)
|
mm
|
3424
|
|
Max. Width(outrigger)
|
mm
|
2315
|
|
Bucket width
|
mm
|
2328
(with attachment)
2313
(bucket max. width
|
|
Loading Operation Specification
|
|
Rated Bucket Capacity(m³)
|
1.0
|
|
A. Max. Dumping Clearance(mm)
|
2612
|
|
B. Max. Dump reach(mm)
|
727
|
|
C. Dig depth
|
191
|
|
D. drawback angle at ground pos.
|
40°
|
|
E. Bucket upward angle at max. working height
|
63°
|
|
Max. breakout force
|
>40
|
|
Rated Lifting Force
|
25
|
|
Rise Time
|
5.5
|
|
Fall Time
|
4.5
|
|
Tilting Time
|
1.5
|
|
Excavating Operation Specification
|
|
Rated Backhoe Bucket Capacity
|
0.3
|
|
F. Max. Digging Depth
|
4340
|
|
Max. Digging Force
|
>50
|
|
G. Max. Digging Radius
|
5150
|
|
H. Max. Dump Height
|
3738
|
|
I. Max. Outreach from mid. of Rear Axle mm
|
6583
|
|
J. Max. Outreach at the Max. Dump Height (mm)
|
1084
|
|
Turning Angle
|
180°
|
Competitive Advantage:
- Have strong design team, experience engineers supply good service;
- The quality is reliable, the appearance looks modern and fashion;
- Reasonable price.
