Detailed Product Description
Bucket Capacity: |
0.9cbm |
Rated Capacity: |
8200kg |
Power Source: |
Diesel Engine |
Application: |
Construction, Mines |
Product Name: |
Backhoe Loader, Backhoe Wheel Loader |
Type: |
4 Wheel |
Total Cycle Time: |
10.9s |
Moving Type: |
Wheel Loader |

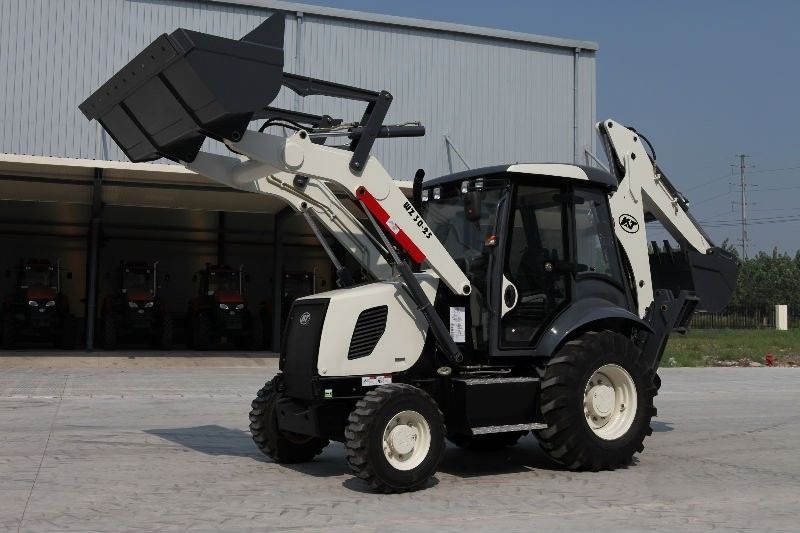

Four Wheel Backhoe Loader
Quick Detail:
1, backhoe loader, wheel loader, backhoe wheel loader
2, industrial area
3, 8200kg rated capacity, 0.9cbm bucket
Description:
Adopt the Deutz turbo charging engine, which have the advantage of high fuel consumption efficiency, low emission, big powerman margin, etc
Perkins engine have the advantage of powerful, low fuel consumption, low emission and excellent start performance in low temperature. Euro III emission standard.
The international famous enterprise of CARRARO, Electric-hydraulic control, Synchromesh mechanical shift.
The international famous enterprise of CARRARO, Single-side braking axle with free-maintenance wet-type.
Applications:
Backhoe loader is a widely used in highway, railway, construction, utilities, ports, mines and other construction projects of earthwork construction machinery, it is mainly used for shoveling soil, sand, lime, coal and other bulk materials, but also on the ore , hard soil, etc. for mild shoveling job
Specifications:
Loading Performance:
Equipped with4 in 1 multi-purpose loading bucket, with the function of scraping, bulldozing, leveling, clamping, etc.
Automatic leveling system of loading bucket avoids material drops out, automatic reposition after dumping.
In-line arrangement double cylinder of the loading system has the superior breakout force. The loading bucket could completely turnover.
Excavating Performance:
H-type outriggers and side shift excavating gear, with superior working stability, large working range, high efficiency.
Attached with different attachment, it could accomplish different operations, such as excavating, crushing, skiving, etc.
Excavating control valve with seven jumper valves, special designed buffer system, ensure the working process smoother and steadier.
Loading Operation. Specification:
Loading Operation Specification
|
Rated Bucket Capacity(m³)
|
0.9
|
A. Max. Dumping Clearance(mm)
|
2550
|
B. Max. Dump reach(mm)
|
744
|
C. Dig depth (mm)
|
191
|
D. drawback angle at ground pos.
|
40°
|
E. Bucket upward angle at max. working height
|
63°
|
Max. breakout force (kN)
|
﹥40
|
Rated Lifting Force (kN)
|
﹥25
|
Rise Time (s)
|
5.1
|
Fall Time (s)
|
4.9
|
Tilting Time (s)
|
0.9
|
Excavating Operation Specification
|
Rated Backhoe Bucket Capacity (cbm)
|
0.2
|
F. Max. Excavating Depth (mm)
|
4365
|
Max. Excavating Force (kN)
|
﹥57
|
G. Max. Excavating Radius (mm)
|
5390
|
H. Max. Dump Height (mm)
|
3500
|
I. Max. Outreach from mid. of Rear Axle (mm)
|
6583
|
J. Max. Outreach at the Max. Dump Height (mm)
|
1084
|
Turning Angle
|
180°
|
Engine
|
Engine Model
|
DEUTZ TD226B
|
Type
|
Four-stroke, Direct Injection type, Turbo Charge
|
Rated speed(rpm)
|
2200
|
Rated power (hp/kw)
|
95/70
|
Peak torque (N.m)
|
380
|
transmission System
|
Transmission
|
Four gear synchronization, electric-hydraulic control forward/backward. Switch, shift and loading control handle have clutch splitting key
|
Driving Break
|
Individual brake on left or right wheel, electric-hydraulic control, built-in wet-type brake block.
|
Parking Break
|
Mechanical control with electronic sensor
|
Front Axle
|
Swing turn, oscillating angle is 22°.
|
Rear Axle
|
Braking axle with free-maintenance wet-type.
|
Min. Turning Radius at the outer of Front Wheel(mm)
|
Two-Wheel Drive
|
3790
|
|
Four-Wheel Drive
|
4300
|
Min. Ground Clearance(mm)
|
Two-Wheel Drive
|
335
|
Max. Driving Force (KN)
|
Two-Wheel Drive
|
43.8
|
|
Four-Wheel Drive
|
70
|
Travel Speed(km/h)
|
Gear
|
Forward
|
Backward
|
|
Ⅰ
|
5.8
|
5.8
|
|
Ⅱ
|
10.5
|
10.5
|
|
Ⅲ
|
20.1
|
20.1
|
|
Ⅳ
|
40.2
|
40.2
|
Tyre
|
Fore Tire
|
Two-Wheel Drive
|
14-17.5NHS-14PR
|
Rear Tire
|
Two-Wheel and Four-Wheel Drive
|
19.5L-24-12PR R-4
|
Hydraulic System
|
Loading Pressure (MPa)
|
21.5
|
Excavating Pressure (MPa)
|
21.5
|
Steering Pressure (MPa)
|
14
|
Operation Mode
|
Load Control
|
Mono lever controls overturn of the loading bucket, button controlled differential lock and the clutch’s shift.
|
|
Excavating Control
|
Seven spool and control valve accessories, double handle control the working cycle of boom, dipper derrick boom and bucket
|
Transportation Dimension
|
L. Total Length(m)
|
5.84
|
M. Boom height for Transportation(m)
|
3.548
|
Total width(m)
|
2.24
|
N. Wheel Base (m)
|
2.15
|
P. Cab Height (m)
|
2.70
|
Operating Weight (kg)
|
8200
|
