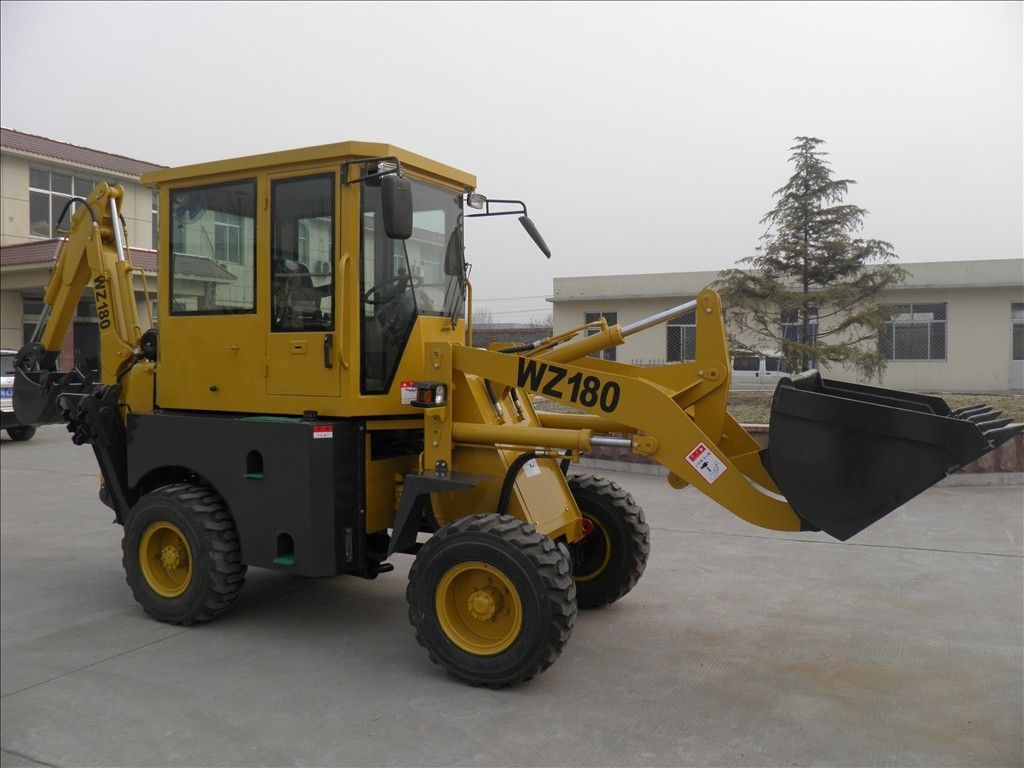

Four Wheel Tractor Loader Backhoe With Cummins Engine 0.9cbm Bucket 8260kg

Four Wheel Tractor Loader Backhoe With Cummins Engine 0.9cbm Bucket 8260kg supplier Four Wheel Tractor Loader Backhoe With Cummins Engine 0.9cbm Bucket 8260kg supplier

Large Image :  Four Wheel Tractor Loader Backhoe With Cummins Engine 0.9cbm Bucket 8260kg

Product Details:

Place of Origin:China
Brand Name:SAT or OEM
Certification:CE, ISO
Model Number:WZ30-90

Payment & Shipping Terms:

Minimum Order Quantity:1 unit
Price:negotiation
Packaging Details:Standard export package
Delivery Time:30 days after receipt of 30% deposit
Payment Terms:30% T/T in advance, 70% balance amount paid before shipment
Supply Ability:50 units per month
Detailed Product Description
Bucket Capacity: 0.9cbm Power Source: Diesel Engine
Application: Highway, Ports, Earthwork, Railway Product Name: Backhoe Wheel Loader
Type: 4 Wheel Moving Type: Wheel Loader



Four Wheel Tractor Loader Backhoe With Cummins Engine 0.9cbm Bucket 8260kg





Quick Detail:



1, backhoe loader, wheel loader, backhoe wheel loader

2, industrial area

3, 8260kg rated capacity, 0.9cbm bucket





Description:



-WZ30-90 backhoe loader
-Total operating weight:8260kg

-Cummins 4BT3.9-C100 engine

-Hydraulic seneing priorcontrolling
-Various safety lock system





Applications:



Backhoe loader is a widely used in highway, railway, construction, utilities, ports, mines and other construction projects of earthwork construction machinery, it is mainly used for shoveling soil, sand, lime, coal and other bulk materials, but also on the ore , hard soil, etc. for mild shoveling job





Specifications:



Items

Specification

Loading bucket capacity

0.9M³

Digging bucket capacity

0.3M³

Max digging up capacity

50KN

Bucket discharge height

2200mm

Backhoe bucket height

3450mm

Max digging depth

4100mm

Bucket slewing angle

180°

Steering angle

38°

Mini. Turning radius

4025mm

Front wheelbase

1930mm

Rear wheelbase

1830mm

Tread

2020mm

Mini. Ground clearance

400mm

Max travel speed

30km/h

Bucket lifting time

5s

Bucket lower time

2.5s

Bucket discharge time

1.2s

System pressure

22Mpa

Flow

156L/Min

Hydraulic pilot controlling system

Hydraulic sensing prior controlling

Engine

Cummins 4BT3.9-C100

Rated power

75Kw / 2400rpm

Min. fuel consumption

305g / kw.h

Max. (peak) torque

337n.m

Displacement

5.05L

Axles

Front drive device type

Rear wheel reduction type

Tire

17.5/25

Pressure

0.22Mpa

Overall dimension

7565*2240*2830mm

Operation weight

8260kg





Competitive Advantage:



  1. Have strong design team, experience engineers supply good service;
  2. The quality is reliable, the appearance looks modern and fashion;
  3. Reasonable price.
