3 Wheel Electric Forklift Truck 1.8T Capacity 500mm Load Center

Good Quality Diesel Forklift Truck on sale
Good Quality Electric Forklift Truck on sale
The forklift looks fashion with satisfied performance, low noise, low consumption, strong power, Shengyuan is reliable supplier.

—— David (Slovenia)

Matar Factory bought machine from Shengyuan in 2010, until now the machine works in good condition, nothing broken to stop the machine.

—— Mr. Abdullah ( Vietnam)

I'm Online Chat Now

3 Wheel Electric Forklift Truck 1.8T Capacity 500mm Load Center

3 Wheel Electric Forklift Truck 1.8T Capacity 500mm Load Center supplier 3 Wheel Electric Forklift Truck 1.8T Capacity 500mm Load Center supplier 3 Wheel Electric Forklift Truck 1.8T Capacity 500mm Load Center supplier

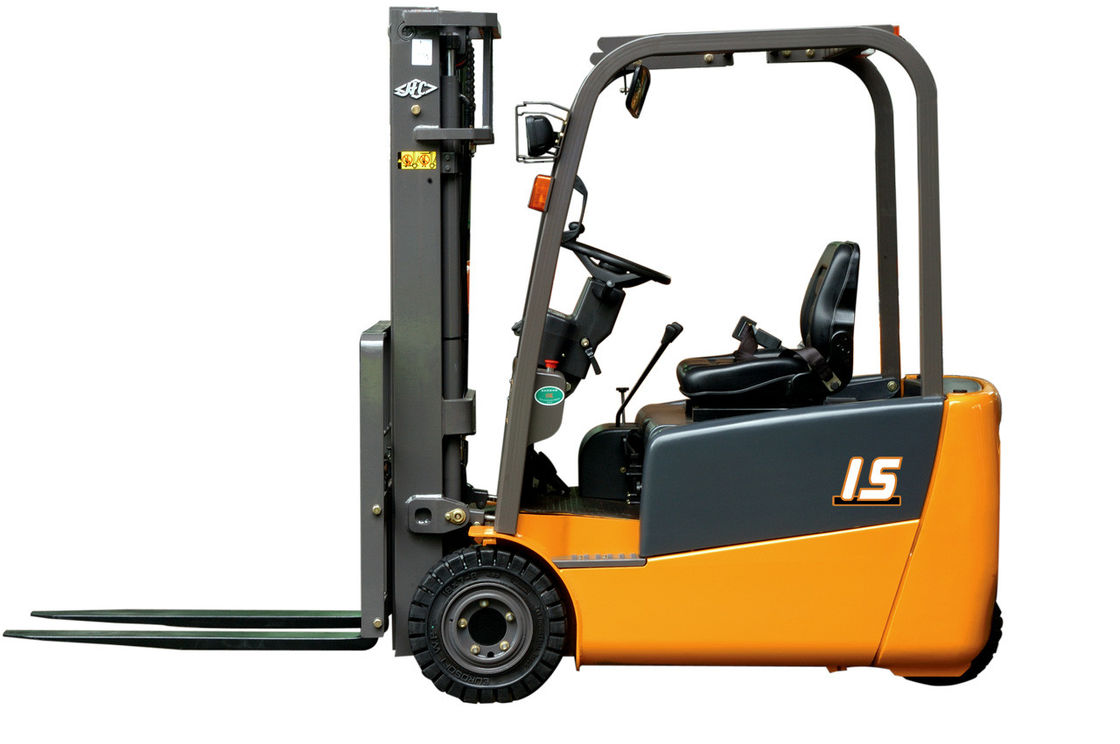

Large Image :  3 Wheel Electric Forklift Truck 1.8T Capacity 500mm Load Center

Product Details:

Place of Origin:China
Brand Name:Hangcha (HC)
Certification:ISO9001: 2008, ISO14001: 2004
Model Number:CPD10J

Payment & Shipping Terms:

Minimum Order Quantity:1 unit
Price:negotiation
Packaging Details:Nude package
Delivery Time:30-40 days
Payment Terms:30% T/T in advance, 70% balance paid against copy of B/L
Supply Ability:60000 units/year
Detailed Product Description
Lift Height: 3000mm Power Souce: Electric Power
Application: Loading Cargo, Unloading Cargo Function: Material Handling, Stacking, Select/Picking
Name: Fork Lift Truck Type: Seat Forklift, Reach Forklift





3 Wheel Electric Forklift Truck 1.8T Capacity 500mm Load Center





Quick Detail:



1,  electric forklift truck, battery forklift

2,  Material Handling, loading & unloading cargo, moving cargo in pallets

3,  1800kg rated capacity, 3000mm lifting height, 500mm load center





Description:



The new J series 1.3-2.0 T front wheel drive electric forklift is a heavy-duty vehicle and is designed for 10,000 running hours or more between major overhauls. Combined with the latest technology, this simply designed vehicle comes with up to 500 hours service intervals. It can be easily maintained with no special training and tools, thus ensuring low operational cost. For example, the Curtis Gen2 AC system with simplified circuitry and brushless motors demand minimal servicing. In addition, the twin AC motors not only provides high traveling performance for the forklift, but also offers easy access from the front for servicing.



Standard configuration:

3m 2-stage mast

Solid tire

Front lighting system

Back up alarm

Rear view mirror

Seat with belt

920mm fork





Applications:



Material Handling, loading & unloading cargo, moving cargo in pallets in warehouse, factory building, storage yard, airport, sea port, super market.





Specifications:



Model



CPDS13J

CPDS15J

CPDS16J

CPDS18J

CPDS20J

Power type



Electric

Rated capacity

Kg

1300

1500

1600

1800

2000

Load center

mm

500

500

500

500

500

Lift height

mm

3000

3000

3000

3000

3000

Length to face of fork

mm

1792

1792

1900

1900

2012

Overall width

mm

1060

1060

1060

1060

1060

Mast lowed height

mm

1995

1995

1995

1995

1995

Mast extended height

mm

3945

3945

3945

3945

3945

Overhead guard height

mm

1960

1960

1960

1960

1960

Turning radius (outside)

mm

1440

1440

1550

1550

1658

Wheelbase

mm

1250

1250

1358

1358

1465

Battery

V/Ah

48/400

48/400

48/500

48/500

48/600

Self weight

Kg

2760

2950

3020

3080

3370



   Spec.

Type

Controller

Motor

Power

Manufacture

Type

Driven motor / S 60min(Kw)

Pump motor / S 15min(Kw)

C1

Electric

Curtis

AC

4.75 x 2

8.6DC

C2

Electric

Curtis

Full AC

4.75 x 2

8.6AC

3 Wheel Electric Forklift Truck 1.8T Capacity 500mm Load Center



Competitive Advantage:



  1. Have strong design team, experience engineers supply good service;
  2. The quality is reliable, the appearance looks modern and fashion;
  3. One year(2000 hours) quality warranty, all kinds of spare parts are available.
