Storage Yard Electric Forklift Truck / Seat Narrow Aisle Lift Truck AC System CE

Storage Yard Electric Forklift Truck / Seat Narrow Aisle Lift Truck AC System CE supplier Storage Yard Electric Forklift Truck / Seat Narrow Aisle Lift Truck AC System CE supplier Storage Yard Electric Forklift Truck / Seat Narrow Aisle Lift Truck AC System CE supplier Storage Yard Electric Forklift Truck / Seat Narrow Aisle Lift Truck AC System CE supplier Storage Yard Electric Forklift Truck / Seat Narrow Aisle Lift Truck AC System CE supplier Storage Yard Electric Forklift Truck / Seat Narrow Aisle Lift Truck AC System CE supplier

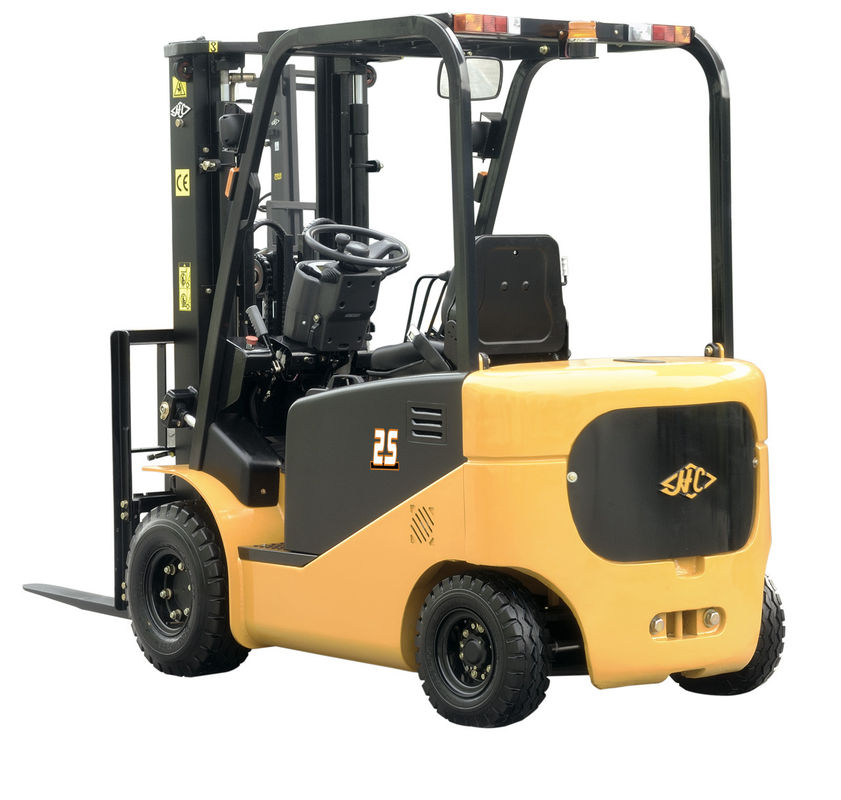

Large Image :  Storage Yard Electric Forklift Truck / Seat Narrow Aisle Lift Truck AC System CE

Product Details:

Place of Origin:China
Brand Name:Hangcha (HC)
Certification:ISO9001: 2008, ISO14001: 2004
Model Number:CPD35J

Payment & Shipping Terms:

Minimum Order Quantity:1 unit
Price:negotiation
Packaging Details:Nude package
Delivery Time:30-40 days
Payment Terms:30% T/T in advance, 70% balance paid against copy of B/L
Supply Ability:60000 units/year
Detailed Product Description
Load Center: 500mm Power Souce: Electric Power
Application: Port, Container, Storage Yard Function: Loading, Unloading, Stacking
Name: Electric Forklift Truck, Powered Pallet Forklift Type: Seat Forklift, Narrow Aisle Forklift





Storage Yard Electric Forklift Truck / Seat Narrow Aisle Lift Truck AC System CE





Description:



The new J series four wheel electric counterbalance forklift can realize high lifting, long traveling and multiple shifting. Due to the soft landing system, the noise is greatly reduced. With the wide view mast, the forward visibility is enhanced. In addition, this truck can be provided with both of AC and DC system for option. According to customers’ demand, side battery change is also available. Furthermore, the battery is installed at the lowest part of the truck frame, so as to ensure traveling stability and easy access to daily check. By the way, the forklift is a economical vehicle, as it requires minimized maintenance costs.

Standard configuration:

3m 2-stage mast

Pneumatic tire

Front lighting system

Back up alarm

Rear view mirror

Seat with belt

1070mm fork



Quick Detail:



1, electric forklift truck, battery forklift

2,  Material Handling, loading & unloading cargo, moving cargo in pallets

3,  3500kg rated capacity, 3000mm lifting height, 500mm load center

4,  Curtis controller

5,   DC, semi-AC & full AC system





Applications:



Material Handling, loading & unloading cargo, moving cargo in pallets in warehouse, factory building, storage yard, airport, sea port, super market.





Specifications:



Model



CPD30J

CPD35J

Power type



Electric

Rated capacity

Kg

3000

3500

Load center

mm

500

500

Lift height

mm

3000

3000

Length to face of fork

mm

2490

2570

Overall width

mm

1265

1302

Mast lowed height

mm

2100

2186

Mast extended height

mm

4135

4221

Overhead guard height

mm

2090

2090

Turning radius (outside)

mm

2230

2310

Wheelbase

mm

1625

1625

Battery

V/Ah

80/500

80/500

Self weight

Kg

5050

5450



   Spec.

Type

Controller

Motor

Power

Manufacture

Type

Driven motor / S 60min(Kw)

Pump motor / S 15min(Kw)

C1

Electric

Curtis

AC

11.75

10

C2

Electric

Curtis

Full AC

11.75

10



Electric

Curtis

DC

11.75

10



Storage Yard Electric Forklift Truck / Seat Narrow Aisle Lift Truck AC System CE

Competitive Advantage:



  1. Have strong design team, experience engineers supply good service;
  2. The quality is reliable, the appearance looks modern and fashion;
  3. One year(2000 hours) quality warranty, all kinds of spare parts are available.
