1.3 Ton AC Electric heavy duty Forklifts Truck Curtis Control CE Mark

1.3 Ton AC Electric heavy duty Forklifts Truck Curtis Control CE Mark supplier 1.3 Ton AC Electric heavy duty Forklifts Truck Curtis Control CE Mark supplier 1.3 Ton AC Electric heavy duty Forklifts Truck Curtis Control CE Mark supplier

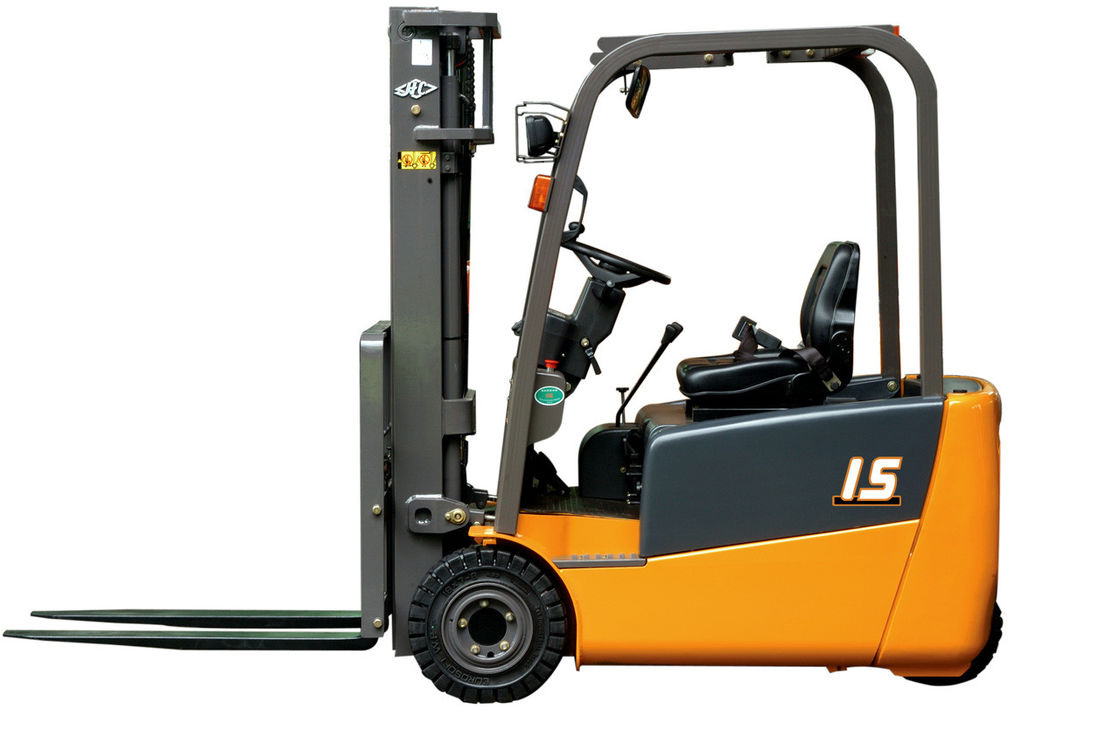

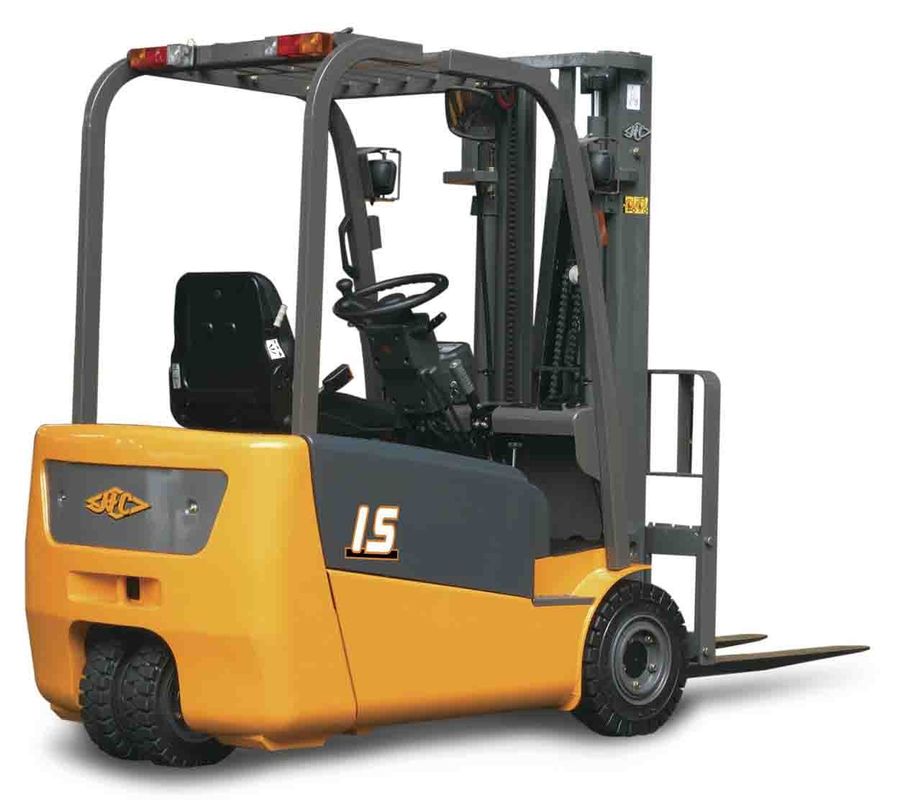

Large Image :  1.3 Ton AC Electric heavy duty Forklifts Truck Curtis Control CE Mark

Product Details:

Place of Origin:China
Brand Name:Hangcha (HC)
Certification:ISO9001: 2008, ISO14001: 2004
Model Number:CPDS13J

Payment & Shipping Terms:

Minimum Order Quantity:1 unit
Price:negotiation
Packaging Details:Nude package
Delivery Time:30-40 days
Payment Terms:30% T/T in advance, 70% balance paid against copy of B/L
Supply Ability:60000 units/year
Detailed Product Description
Rated Capacity: 1.3 Ton Power Souce: Electric Power
Application: Cabin, Container Function: Moving Cargo, Material Handling, Select/Picking
Name: Powered Pallet Forklift Type: Reach Forklift, Load Forklift





1.3 Ton AC Electric heavy duty Forklifts Truck Curtis Control CE Mark





Quick Detail:



1,  electric forklift truck, battery forklift

2,  Material Handling, loading & unloading cargo, moving cargo in pallets

3, 1300kg rated capacity, 3000mm lifting height, 500mm load center

4,   Curtis controller

5,  Semi-AC & full AC system

Description:



The new J series 1.3-2.0 T front wheel drive electric forklift is a heavy-duty vehicle and is designed for 10,000 running hours or more between major overhauls. Combined with the latest technology, this simply designed vehicle comes with up to 500 hours service intervals. It can be easily maintained with no special training and tools, thus ensuring low operational cost. For example, the Curtis Gen2 AC system with simplified circuitry and brushless motors demand minimal servicing. In addition, the twin AC motors not only provides high traveling performance for the forklift, but also offers easy access from the front for servicing.



Standard configuration:

3m 2-stage mast

Solid tire

Front lighting system

Back up alarm

Rear view mirror

Seat with belt

920mm fork





Applications:



Material Handling, loading & unloading cargo, moving cargo in pallets in warehouse, factory building, storage yard, airport, sea port, super market.





Specifications:



Model



CPDS13J

CPDS15J

CPDS16J

CPDS18J

CPDS20J

Power type



Electric

Rated capacity

Kg

1300

1500

1600

1800

2000

Load center

mm

500

500

500

500

500

Lift height

mm

3000

3000

3000

3000

3000

Length to face of fork

mm

1792

1792

1900

1900

2012

Overall width

mm

1060

1060

1060

1060

1060

Mast lowed height

mm

1995

1995

1995

1995

1995

Mast extended height

mm

3945

3945

3945

3945

3945

Overhead guard height

mm

1960

1960

1960

1960

1960

Turning radius (outside)

mm

1440

1440

1550

1550

1658

Wheelbase

mm

1250

1250

1358

1358

1465

Battery

V/Ah

48/400

48/400

48/500

48/500

48/600

Self weight

Kg

2760

2950

3020

3080

3370



   Spec.

Type

Controller

Motor

Power

Manufacture

Type

Driven motor / S 60min(Kw)

Pump motor / S 15min(Kw)

C1

Electric

Curtis

AC

4.75 x 2

8.6DC

C2

Electric

Curtis

Full AC

4.75 x 2

8.6AC

1.3 Ton AC Electric heavy duty Forklifts Truck Curtis Control CE Mark



Competitive Advantage:



  1. Have strong design team, experience engineers supply good service;
  2. The quality is reliable, the appearance looks modern and fashion;
  3. One year(2000 hours) quality warranty, all kinds of spare parts are available.
