2.5 Ton Diesel Forklift Truck Transmission With TCM Techonology

Good Quality Diesel Forklift Truck on sale
Good Quality Electric Forklift Truck on sale
The forklift looks fashion with satisfied performance, low noise, low consumption, strong power, Shengyuan is reliable supplier.

—— David (Slovenia)

Matar Factory bought machine from Shengyuan in 2010, until now the machine works in good condition, nothing broken to stop the machine.

—— Mr. Abdullah ( Vietnam)

I'm Online Chat Now

2.5 Ton Diesel Forklift Truck Transmission With TCM Techonology

2.5 Ton Diesel Forklift Truck Transmission With TCM Techonology supplier 2.5 Ton Diesel Forklift Truck Transmission With TCM Techonology supplier 2.5 Ton Diesel Forklift Truck Transmission With TCM Techonology supplier

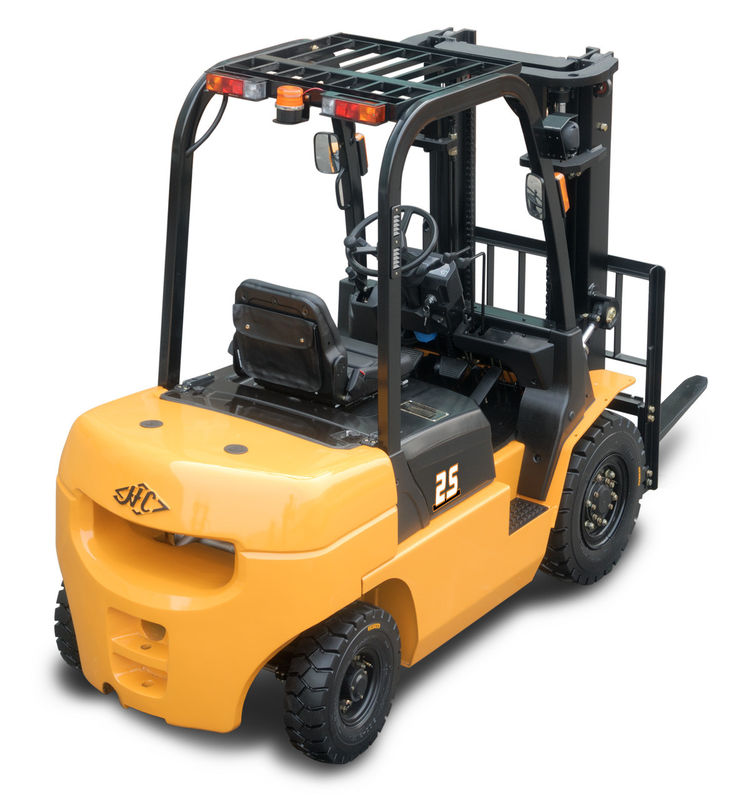

Large Image :  2.5 Ton Diesel Forklift Truck Transmission With TCM Techonology

Product Details:

Place of Origin:China
Brand Name:Hangcha (HC)
Certification:CE, EPA
Model Number:CPCD25N

Payment & Shipping Terms:

Minimum Order Quantity:1 unit
Price:negotiation
Packaging Details:Nude package
Delivery Time:30-40 days
Payment Terms:30% T/T in advance, 70% balance paid against copy of B/L
Supply Ability:60000 units/year
Detailed Product Description

2.5 Ton Diesel Forklift Truck Transmission With TCM Techonology







Quick Detail:



1,  Diesel forklift truck, Diesel power forklift

2,  Material Handling, loading & unloading cargo, moving cargo in pallets

3,  2500kg rated capacity, 3000mm lifting height, 500mm load center

4.  China / ISUZU / Yanmar / NISSAN (UD) engine available

5.  China / Okamura / NISSAN (UD) transmission available





Description:



The new R series 2.5 ton internal combustion counterbalance forklift truck is ergonomically designed, providing high working efficiency, as well as reliable and durable operation. Designed with long wheelbase, the whole vehicle achieves better longitudinal stability and residual capacity at the same lifting height than the former model. This also helps to prolong the working time of rear wheel because of the reduced rear axle’s load.

Our internal combustion counterbalance forklift truck is powered by environment friendly engines, with the exhaust emissions conforming to related regulations and the noise level complying with EU standards. In addition, it is provided with a spacious cab with low vibration, little noise, and clean air. Hence, the truck is ideal for places with high health and safety standards.

With the adopted common automotive cab layout, the operator requires no special training. The cab also provides both of mental and physical driving comfort, so as to ensure minimal load damage and accident over an arduous 8-hour shift. In addition, the forklift truck can be easily maintained by experienced mechanical engineers due to its simple design, thus ensuring reduced downtime.



Standard configuration:

3m 2-stage mast

Pneumatic tire

Front lighting system

Back up alarm

Rear view mirror

Seat with belt

1070mm fork





Applications:



Material Handling, loading & unloading cargo, moving cargo in pallets in warehouse, factory building, storage yard, airport, sea port, super market.





Specifications:



Model



CPCD20N

CPCD25N

Power type



Diesel

Rated capacity

Kg

2000

2500

Load center

mm

500

500

Lift height

mm

3000

3000

Length to face of fork

mm

2530

2605

Overall width

mm

1155

1155

Mast lowed height

mm

1985

1985

Mast extended height

mm

4045

4045

Overhead guard height

mm

2140

2140

Turning radius (outside)

mm

2175

2235

Wheelbase

mm

1650

1650

Self weight

Kg

3440

3765



  Spec.

Type





Engine

Transmission

Power

Manufacture

Model

Rated output / r.p.m. (Kw)

Rated torque / r.p.m. (N.m)

Emission STD

Manufacture

RG2

Diesel

China XC

C490BPG

40/2650

162/1800-2000



China

powershift

China

mechanical

RG5

Diesel

China XC

A490BPG

37/2650

148/1900



China

powershift

China

mechanical

RW10

Diesel

ISUZU

C240PKJ-30

34.5/2500

137.7/1800

Stage 3A

China

powershift

China

mechanical

RW13

Diesel

ISUZU

4JG2 PE-01

44.9/2450

186.3/1700

Stage 2

China

powershift

China

mechanical

RW10B

Diesel

ISUZU

C240PKJ-30

34.5/2500

137.7/1800

Stage 3A

Okamura

/

RW15A

Diesel

NISSAN

TD27

38.5/2300

160/2300



NISSAN

/

RW27

Diesel

XINCHAI

A498BT1

36.8/2400

186/1700

E-MARK 3

China

powershift

China

mechanical

RW32

Diesel

YANMAR

4TNE92

32.8/2450

149.4/1600

Stage 3A /

Tier 3

China

powershift

/





Manufacture   HANGCHA
Basic model   CPCD25N
Type   RG2 RG5 RW27 RW15A
Power type   Diesel Diesel Diesel
Rated capacity Kg 2500 2500 2500
Load center mm 500 500 500
Lifting height mm 3000 3000 3000
Free lift height mm 155 155 155
Fork size LxWxT mm 1070x122x40 1070x122x40 1070x122x40
Mast tilt range F/R deg 6/12 6/12 6/12
Fork overhang(wheel center to fork face) mm 475 475 475
Rear overhang mm 480 480 480
Length to face of fork mm 2605 2605 2605
Overall width mm 1155 1155 1155
Mast lowered height mm 1985 1985 1985
Mast extended height mm 4045 4045 4045
Overhead guard height mm 2140(2200) 2140(2200) 2140(2200)
Turning radius(outside) mm 2230 2235 2235
Min.right angle stacking aisle width mm 2710 2710 2710
Travel speed(No load) km/h 22 20.5 19.5 18
Lifting speed(full load) mm/sec 580 540 520 570
Lowering(full load) mm/sec 500 500 500
Max.drawbar pull(full load) N 18700 18000 22600 23100
Max.gradeability(full load) % 20 25 25 25
Front tyre mm 7.00-12-12PR 7.00-12-12PR 7.00-12-12PR
Rear tyre mm 6.00-9-10PR 6.00-9-10PR 6.00-9-10PR
Front thread mm 965 965 965
Rear thread mm 970.5 970.5 970.5
Wheelbase mm 1650 1650 1650
Ground clearance Lowest mm 105 105 105
Wheelbase center mm 150 150 150
Self weight kg 3440 3440 3440
Weight distribution Full load Front/rear   5530/735 5530/735 5530/735
No load Front/rear   1560/2205 1560/2250 1560/2250
Battery(voltage/capacity) V/Ah 12/100 12/100 12/100
Engine Model   C490BPG TD27 A498BT1 TD27
Manufacture   XINCHAI NISAAN XINCHAI NISSAN
Rated output/r.p.m. kW 40/2650 38.5/2300 36.8/2400 38.5/2300
Rated torque/r.p.m. N.M 162/1800-2000 160/2300 186/1700 160/2300
No.of cylinder   4 4 4 4
Bore x stroke mm 90x105 96x92 98x105 96x92
Emission STD       E-MARK III
Displacement cc 2670 2663 3168 2663
Fuel tank capacity L 60 60 60 60
Transmission Manufacture   CHINA NISSAN CHINA NISSAN
Type   Powershift Powershift Powershift Powershift
Stage FWD/RVS   1/1 1/1 1/1 1/1
Operation pressure For attachments Mpa 17.5 17.5 17.5 17.5

2.5 Ton Diesel Forklift Truck Transmission With TCM Techonology



Competitive Advantage:



  1. Have strong design team, experience engineers supply good service;
  2. The quality is reliable, the appearance looks modern and fashion;
  3. Both of Chinese and imported engine are available for different requirement, with CE & EPA certificate;
  4. One year(2000 hours) quality warranty, all kinds of spare parts are available.
