Detailed Product Description
| Drive Type: |
Gear Drive |
Pattern: |
4WD |
| Steering: |
Hydraulic Steering |
Engine: |
China Diesel Engine |
| Product Name: |
Four Wheel Tractor |
Usage: |
Farmland, Paddy |

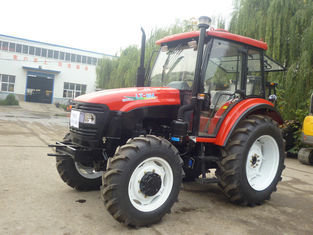

Front Steering Four Wheel Tractor For Farming , International Harvester Tractor
Quick Detail:
1, Wheel tractor, tractor
2, Farmland, transportation
3, 85HP power capacity, diesel engine.
Description:
The model 850/854 is 85 series wheeled tractors, it acts on self's own grinding hair's having the horizontal in the homeland same kind model wheeled tractor in the lead. The main characteristic has: Adopt new firewood diesel , reliability well , has bigger moment of torsion reserve system; 10 inches of pair of effects clutch; The speed change box archives place is 4 X (2 + 1); Detached driving force of postposition exports a device , drive balances , bears the weight of a force big; The entire hydraulic pressure front wheel adopt the independent oil road gets lost , gets lost nimble , reliable , saves labor; The force moment adopt disk brake , braking is big , the braking is reliable.
Main Features:
1.Adopting Xinchai famous diesel engine, good reliability,large torque reserve,low fuel consumption, high economic benefits;
2.10 inch double clutch, high transfer ability, reliable effect, operation more comfortable;
3.Gear box use 4X3(1+1)shuttle engaging sleeve shift,12forward gears,12reverse gear, gear are reasonable, high working efficiency;
4.Adopt independent power output device, steady transmission, large bearing capacity, revolving speed (540/760;540/1000)can choose, meet the complex requirements;
5.Using independent oil hydraulic steering system operation, flexible operation, reliable energy saving;
6.Using disc brakes, large braking torque, good braking effecting;
7.Using forced type lifter, reliable use, convenient maintenance;
8.Final drive adopts planetary reduction structure, compact structure, large reduction ratio;
9.New streamlined appearance, graceful ,HY, fashion;
Applications:
Farmland, spin ground, put water wheels paddy job subsoiler, flour mill corn stalks, a large area of land but also hanging planter, hanging behind but also with mini excavators
Specifications:
|
model
|
LT850
|
|
type
|
4X2
|
|
Overall dimension(mm)
|
Length
|
4080
|
|
Width
|
2038
|
|
High
|
2810
|
|
wheelbase(mm)
|
2195
|
|
Front wheel tread(mm)
|
1385-1685
|
|
Rear wheel tread(mm)
|
1620-2220
|
|
Min. turning radius(m)
|
One side brake
|
3.6±0.2
|
|
One side not brake
|
4.0±0.2
|
|
Min. using mass(kg)
|
3770
|
|
Gear box
|
F16/R8
|
|
Speed(km/h)
|
going
|
1.58-33.69
|
|
retread
|
2.41-34.67
|
|
Engine
|
model
|
LR4B5-23
|
|
Rated power(kw)
|
62.5
|
|
Rated speed(r/min)
|
2300
|
|
Tire type
|
Front tire
|
6.50-20
|
|
Rear tire
|
16.9-34
|
|
Steering system type
|
All hydraulic front wheel steering
|
|
Max. lift-off weight(KN)
|
15
|
|
PTO type
|
Rear-mounted semi-detached
|
|
PTO speed(r/min)
|
760/1000(540/1000 or 540/760 or 760/850 is also available)
|
|
PTO power(kw)
|
53.1
|
|
Roots in control mode
|
Height adjustment, floating control
|
|
Max. traction(KN)
|
16.3
|
|
Counterweight quality(kg)
|
front
|
270
|
|
rear
|
470
|
Competitive Advantage:
- Have strong design team, experience engineers supply good service;
- The quality is reliable, the appearance looks modern and fashion;
- Chinese engine is available with CE certificate;
- Reasonable price.
