Detailed Product Description
| Bucket Capacity: |
0.24cbm |
Digging Dept: |
4022 Mm |
| Digging Arm System: |
Hydraulic |
Application: |
Ditches, Ponds, Clearing Channels |
| Engine: |
Cummins Engine |
Moving Type: |
Crawler Excavator |
| Product Name: |
Hydraulic Crawler Excavator |
Digging Height: |
5752 Mm |
Farmland Construction Hydraulic Crawler Excavator 0.24cbm 4022mm Digging
Quick Detail:
1,excavator, crawler excavator, wheel excavator
2,industrial area
3,0.24cbm bucket capacity
Description:

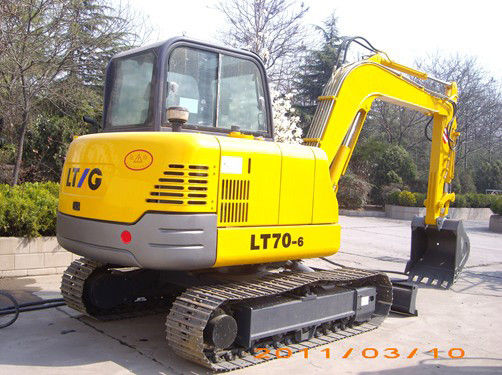

-LT70-6 crawler excavator
-Bucket capacity: 0.24cbm
-Cummins B3.3 engine
Applications:
Farmland construction machinery. Can be used for excavation of reservoirs, ponds, ditches and clearing channels and other operations
Specifications:
|
Crawler Excavator
|
|
Engine
|
Travel system
|
|
Model
|
Imported Cummins B 3.3 engine
|
Travel motor
|
Two-speed independent piston motor
|
|
Parking brake
|
Spring multi disc hydraulic brake
|
|
Type
|
Water-cooled .direct-spary.4 stroke
|
Travel speed
|
4.6/2.8 km/h
|
|
Max. output torque
|
8.5KN
|
|
No. of cylinders
|
Four cylinder line
|
Grade ability
|
35°(70%)
|
|
Crawler tensioning
|
Grease tensioning
|
|
Bore x stroke
|
95mmX 115 mm
|
Upper roller
|
2X1
|
|
Displacement
|
3.3 L
|
Lower roller
|
2X5
|
|
Rated power
|
60HP/2200.rpm (ISO9249)
|
Crawler shoe
|
2X40
|
|
Max. output torque
|
214N.m/1600.rmp
|
Crawler shoe width
|
400mm (500mm)
|
|
Hydraulic system
|
Working range
|
|
Main pump
|
Column pump + Column pump
|
Max. digging radius
|
6387 mm
|
|
Max. displacement
|
66.2 ml/r
|
Max. digging depth
|
4022 mm
|
|
Max. pressure
|
|
Max. digging height
|
5752 mm
|
|
Boom, Arm, Bucket
|
22Mpa
|
Max. dumping clearance
|
4063 mm
|
|
Travel circuit
|
22Mpa
|
Max. arm digging force
|
3800 mm
|
|
Swing circuit
|
21Mpa
|
Dimension
|
|
Control circuit
|
4Mpa
|
Bucket capacity
|
0.24 m³
|
|
Pilot pump
|
Gear pump
|
Overall length
|
6230 mm
|
|
Main valve
|
9 Variable
|
Overall width
|
2060 mm
|
|
Swing system
|
Overall height
|
2780 mm
|
|
Parking brake
|
When swing control rod in the neutral
automatic hydraulic lock
|
Rating platform width
|
1880 mm
|
|
Width of dozer
|
2100 mm
|
|
Clearance of counter weight
|
735 mm
|
|
Parking brake
|
Multi disc hydraulic wet brake
|
Height of counter weight
|
1715 mm
|
|
Min. ground clearance
|
350 mm
|
|
Swing speed
|
9 r/min
|
Tail swing radius
|
1670 mm
|
|
Tail swing radius
|
1670 mm
|
Track axle distance
|
1990 mm
|
|
Swing ball bearing
|
Heavy load. sealed oil lubrication
|
Length of chassis
|
2550 mm
|
|
Track gauge
|
1660 mm
|
|
Liquid
|
Track shoes width
|
400 mm
|
|
Fuel tank
|
128L
|
Ground pressure
|
38 Kpa (400 mm track)
|
|
Hydraulic oil tank
|
75L
|
Blade (width X height)
|
2100 X 420 mm
|
|
Cool ant
|
14L
|
Working dimension of dozer (up and down)
|
370 X 350 mm
|
|
Travel drive
|
2X2.5L
|
Operating weight
|
|
Swing drive
|
6L
|
operating weight (approx.)
|
6800kg
|
|
Air conditioner
|
0.6kg
|
Operating weight includes boom, arm, bucket, operator, lubricant, liquid coolant, full fuel tank and standard equipment
|
|
Operating weight
|
7000kg
|
|
|
Cylinger
|
|
|
|
|
Bore X Stroke X diameter
|
|
|
|
|
|
Boom
|
Φ115X720X65(mm)
|
|
|
|
|
Arm
|
Φ85X880X55(mm)
|
|
|
|
|
Bucket
|
Φ85X600X55(mm)
|
|
|
|
|
Blade
|
Φ110X183X60(mm)
|
|
|
|
Competitive Advantage:
-
Have strong design team, experience engineers supply good service;
-
The quality is reliable, the appearance looks modern and fashion;
-
Reasonable price.
