HomeProductsLPG Forklift Truck

Gas / LPG Forklift Truck Hangcha , Narrow Aisle Load Forklift With 2 Stage Mast

Good Quality Diesel Forklift Truck on sale
Good Quality Electric Forklift Truck on sale
The forklift looks fashion with satisfied performance, low noise, low consumption, strong power, Shengyuan is reliable supplier.

—— David (Slovenia)

Matar Factory bought machine from Shengyuan in 2010, until now the machine works in good condition, nothing broken to stop the machine.

—— Mr. Abdullah ( Vietnam)

I'm Online Chat Now

Gas / LPG Forklift Truck Hangcha , Narrow Aisle Load Forklift With 2 Stage Mast

Gas / LPG Forklift Truck Hangcha , Narrow Aisle Load Forklift With 2 Stage Mast supplier Gas / LPG Forklift Truck Hangcha , Narrow Aisle Load Forklift With 2 Stage Mast supplier Gas / LPG Forklift Truck Hangcha , Narrow Aisle Load Forklift With 2 Stage Mast supplier

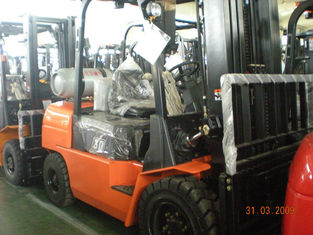

Large Image :  Gas / LPG Forklift Truck Hangcha , Narrow Aisle Load Forklift With 2 Stage Mast

Product Details:

Place of Origin:China
Brand Name:Hangcha (HC)
Certification:ISO9001: 2008, ISO14001: 2004
Model Number:CPQD35N

Payment & Shipping Terms:

Minimum Order Quantity:1 unit
Price:negotiation
Packaging Details:Nude package
Delivery Time:30-40 days
Payment Terms:30% T/T in advance, 70% balance paid against copy of B/L
Supply Ability:60000 units/year
Detailed Product Description
Rated Capacity: 3.5 Ton Power Souce: LPG Engine
Application: Airport, Factory, Cabin, Container Function: Loading, Material Handling, Select/Picking
Name: Powered Pallet Forklift, LPG Forklift Truck Type: Seat Forklift, Load Forklift





Gas / LPG Forklift Truck Hangcha , Narrow Aisle Load Forklift With 2 Stage Mast





Quick Detail:



1,   LPG forklift truck, Gas power forklift

2,   Material Handling, loading & unloading cargo, moving cargo in pallets

3,  3500kg rated capacity, 3000mm lifting height, 500mm load center

4,   NISSAN, GM & China engine available

5,   China, Okamura & NISSAN transmission available



Description:



The new R series 3.5 ton internal combustion counterbalance forklift truck is ergonomically designed, providing high working efficiency, as well as reliable and durable operation. Designed with long wheelbase, the whole vehicle achieves better longitudinal stability and residual capacity at the same lifting height than the former model. This also helps to prolong the working time of rear wheel because of the reduced rear axle’s load.

Our internal combustion counterbalance forklift truck is powered by environment friendly engines, with the exhaust emissions conforming to related regulations and the noise level complying with EU standards. In addition, it is provided with a spacious cab with low vibration, little noise, and clean air. Hence, the truck is ideal for places with high health and safety standards.

With the adopted common automotive cab layout, the operator requires no special training. The cab also provides both of mental and physical driving comfort, so as to ensure minimal load damage and accident over an arduous 8-hour shift. In addition, the forklift truck can be easily maintained by experienced mechanical engineers due to its simple design, thus ensuring reduced downtime.



Standard configuration:

3m 2-stage mast

Pneumatic tire

Front lighting system

Back up alarm

Rear view mirror

Seat with belt

LPG bracket

1070mm fork

Gas / LPG Forklift Truck Hangcha , Narrow Aisle Load Forklift With 2 Stage Mast



Applications:



Material Handling, loading & unloading cargo, moving cargo in pallets in warehouse, factory building, storage yard, airport, sea port, super market.





Specifications:



Model



CPQD30N

CPQD35N

Power type



LPG

Rated capacity

Kg

3000

3500

Load center

mm

500

500

Lift height

mm

3000

3000

Length to face of fork

mm

2750

2800

Overall width

mm

1225

1225

Mast lowed height

mm

2010

2160

Mast extended height

mm

4140

4140

Overhead guard height

mm

2170

2170

Turning radius (outside)

mm

2375

2415

Wheelbase

mm

1760

1760

Self weight

Kg

4255

4555



  Spec.

Type

Engine

Transmission

Convertor

Power

Manufacture

Model

Rated output / r.p.m. (Kw)

Rated torque / r.p.m. (N.m)

Manufacture



RW7

Gasoline/LPG

China WF

491GP

41/2800

161/2000

China powershift

IMPCO

BRC

RW22

Gasoline/LPG

NISSAN

K25

37.4/2300

176.5/1600

China powershift

IMPCO

BRC

RW22A

Gasoline/LPG

NISSAN

K25

37.4/2300

176.5/1600

NISSAN

IMPCO

BRC

RW22B

Gasoline/LPG

NISSAN

K25

37.4/2300

176.5/1600

Okamura

IMPCO

BRC





Competitive Advantage:



  1. Have strong design team, experience engineers supply good service;
  2. The quality is reliable, the appearance looks modern and fashion;
  3. Both of Chinese and imported engine are available for different requirement, with CE & EPA certificate;
  4. One year(2000 hours) quality warranty, all kinds of spare parts are available.
