Garden Mini Skid Steer Loader

Garden Mini Skid Steer Loader supplier
cheap Garden Mini Skid Steer Loader cheap Garden Mini Skid Steer Loader cheap Garden Mini Skid Steer Loader

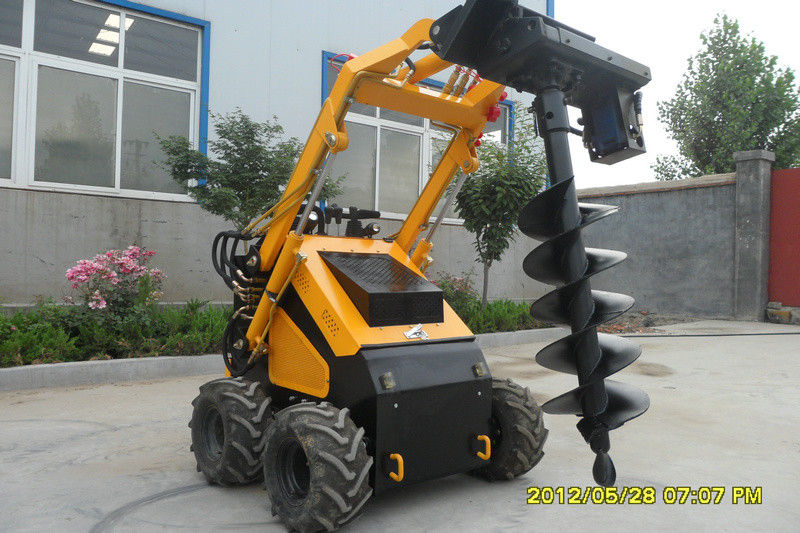

Large Image : Garden Mini Skid Steer Loader

Product Details:

Place of Origin:China
Brand Name:OEM
Certification:CE, ISO
Model Number:JL300

Payment & Shipping Terms:

Minimum Order Quantity:1 unit
Price:negotiation
Packaging Details:Standard export package
Delivery Time:20-30 days after receipt of 30% deposit
Payment Terms:T/T
Supply Ability:10000 units per year
Detailed Product Description
Rated Capacity: 300kg Moving Type: Wheel Loader
Power Source: Diesel Engine Application: Mines, Farm, Garden
Product Name: Mini Skid Steer Loader Type: 4 Wheel





Garden / Pasture 4 Wheel Mini Skid Steer Loader 300kg With Auger Attachmentnt





Quick Detail:



1, Mini skid steer loader, skid steer loader

2, using in farm, garden, pasture

3, 300kg rated capacity





Description:



mini skid steer loader, wheel or crawl

Transmission: Hydraulic transmission

Control system: Hydraulic system

Steering: 360° Steering

Driven : 4 wheels

Overall Dimension:2206*1100*1233mm(with 1 standard bucket)

1.with imported engine: Briggs &Stratton gasoline engine From USA,21/23HP

2.China/Italy pump, china motor, valve

3.Rated load:300Kg

4.with Engineering tires /Rubber track

5.0.15M^3 bucket capacity

- Straightforward operation from the easy to read reference panel

- Multi-functional : (various attachments suitable; 4-in-1 and General Purpose Buckets, Forks, Trenchers, Augers, etc)

New design :Streamline Design, more beautiful flexible

Easy operating Meter panel





Applications:



using in farm, garden, pasture





Competitive Advantage:



  1. Have strong design team, experience engineers supply good service;
  2. The quality is reliable, the appearance looks modern and fashion;
  3. Reasonable price.





Specifications:



Model

JL300



Engine Model B&S

Rated Power(KW)

15.435(21HP)

Rotating speed(rpm)

2800

 (Db)

≦90





Hydraulic system

System Pressure(Mpa)

17

Working time(s)

lift

tipping bucket

landing

4.27

1.34

3.31











Performance parameters



metric

Rated Load

300 kg

Bucket Capacity

0.15 m3

The most heavily lift

375 kg

Max.Travel Speed

0-5.5 km./h



Operating Weight

Herringbone engineering births

860 kg

Caterpillar vehicle

940 kg



Herringbone engineering births

18*8.5-8







Fuel tank capacity

25 L

Oil tank capacity

25 L

Engine displacement

627 ml

Bucket breakout force

550Kg

Tipping load

325kg



Auger Specifications



metric

The imperial

drilling diameter

200-600mm

7.9-23.6 inch

drilling depth

0-1000mm

0-39.4 inch

Motor displacement

1800N.m

25.63 in3/r

Weight

Φ200                 134kg

Φ200          295.4LB

Φ300                 143kg

Φ300          315.3 LB

Φ450                 169kg

Φ450          372.6 LB

Φ600                 181kg

Φ600          399.0 LB
